INON UCL-165M67 Close-up Lens

Price: US$150
Availability: In Stock
Model: 4562121431621
Manufacturer: INON

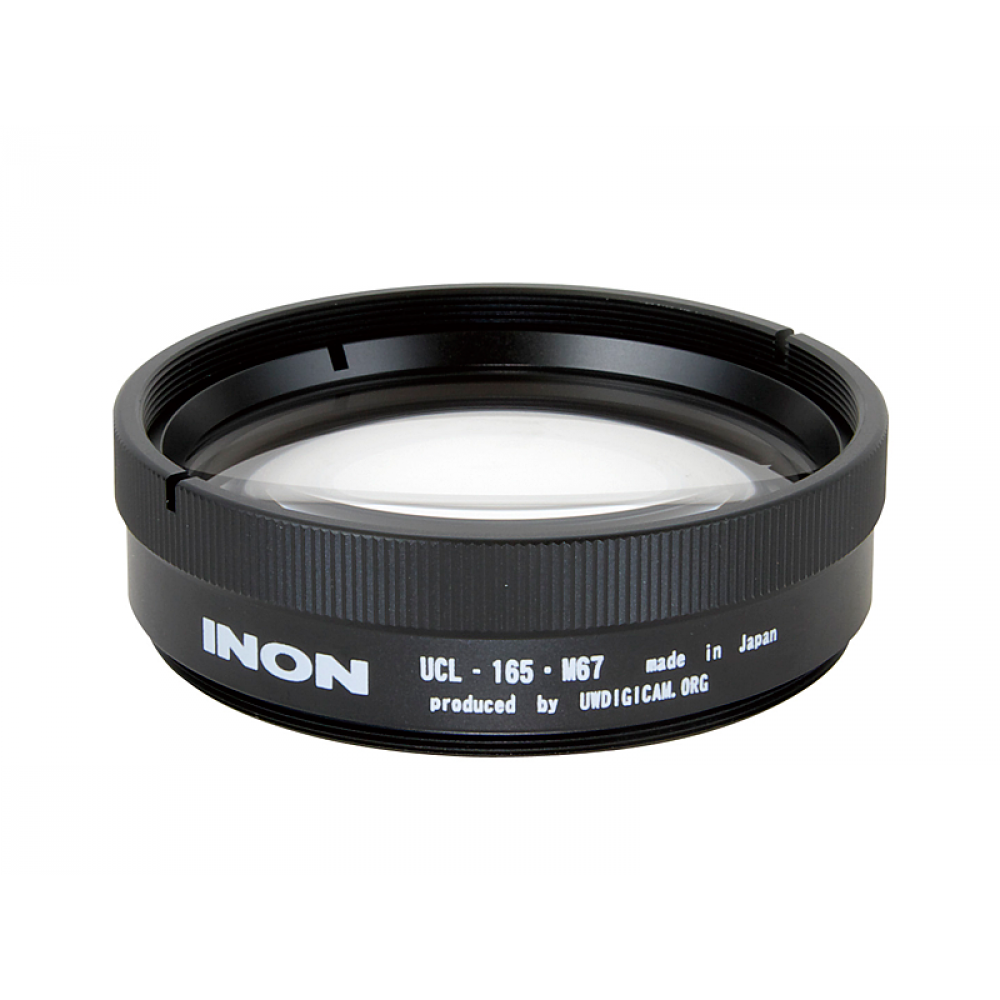

INON UCL-165M67 Close-up Lens
Click to enlarge

[Description]

●The UCL-165M67 is high magnification close-up lens with 16.5cm focal length to shorten minimum focus distance allowing you to get closer to a subject enabling high magnification close-up photography.

●Dual use underwater/land and usable with all zoom range. Even at same shooting distance, it is easy to capture a subject at desired size by adjusting zoom setting.

●The lens is constructed of two plano-convex high quality optical glass elements with inner coating to suppress optical aberrations more effectively comparing to a lens using just one double-convex element, and bring out optimal performance of combined master lens.

●The lens body has screw mount on its front end to stack other UCL-165M67 for even higher magnification macro imaging. Off course the UCL-330 can be stacked as well. The threaded part has a slit to drain water from gap between two lenses to easily separate combined lens underwater.

●Highly versatile screw type「M67 Mount」compatible.

●The UCL-165M67 is directly screwed on a housing which has M67 lens ring. For a housing which does not have M67 lens ring, the UCL-165M67 is attached via dedicated 「M67 Mount Base」. For 「28LD Mount Base」compatible housing, the UCL-165M67 is attached on「28LD Mount Base」via「M67-LD Mount Converter for UCL-330/165M67」.

(*1) Optional「M67-LD Mount Converter for UCL-330/165M67」 is necessary.

Product Specification (*1)

Model UCL-165M67
Outer diameter / Length 72mm / 21.6mm (2.8in / 0.9in)
Weight (air / underwater) 140g / approx.73g (4.9oz / 2.6oz)
Lens construction 2 elements 2 groups
Focal length (air / underwater) 135.6mm / 165mm (5.3in / 6.5in)
Body material / Finishing Corrosion resistant aluminium alloy /Rigid black almite
Glass / Coating Optical glass / Inner couting
Mount thread diameter / pitch M67 / 0.75
Depth rating 60m (197ft)



(*1) Price and specification is subject to change without prior notice.

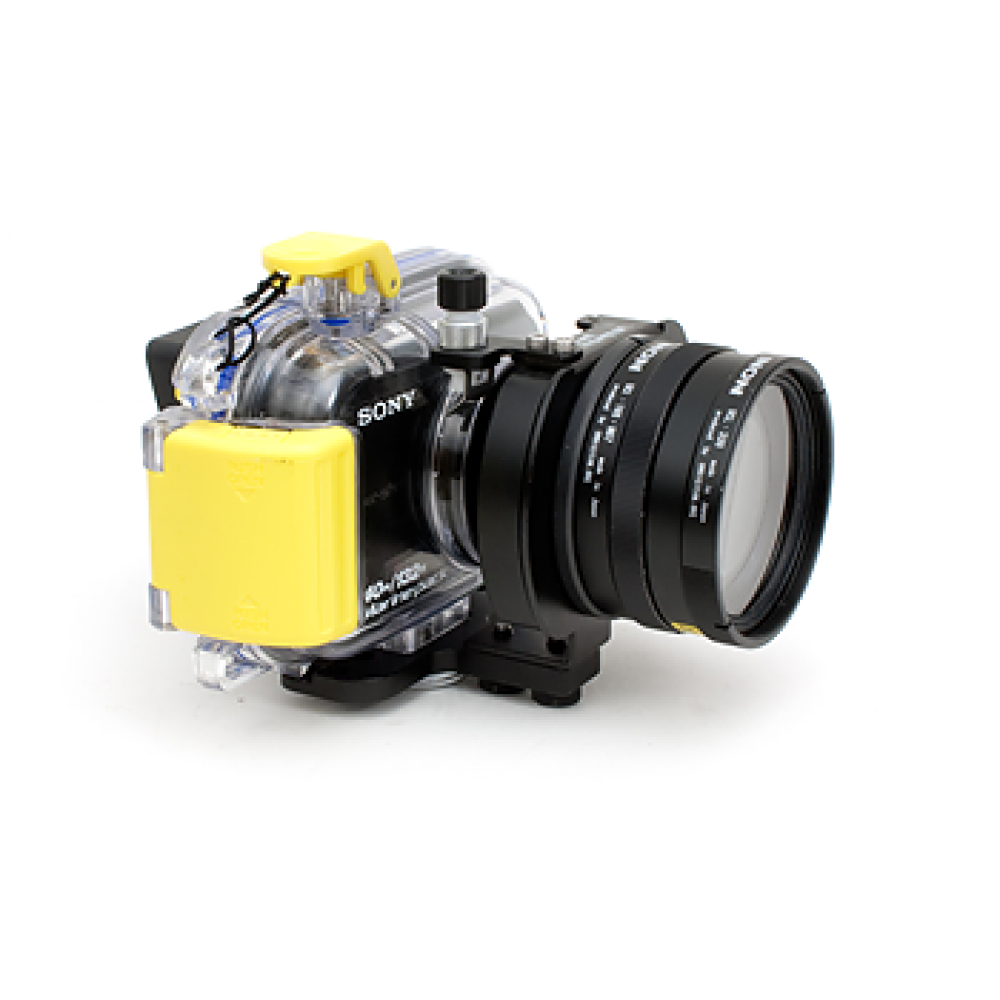

INON UCL-165M67 Close-up Lens
Click to enlarge

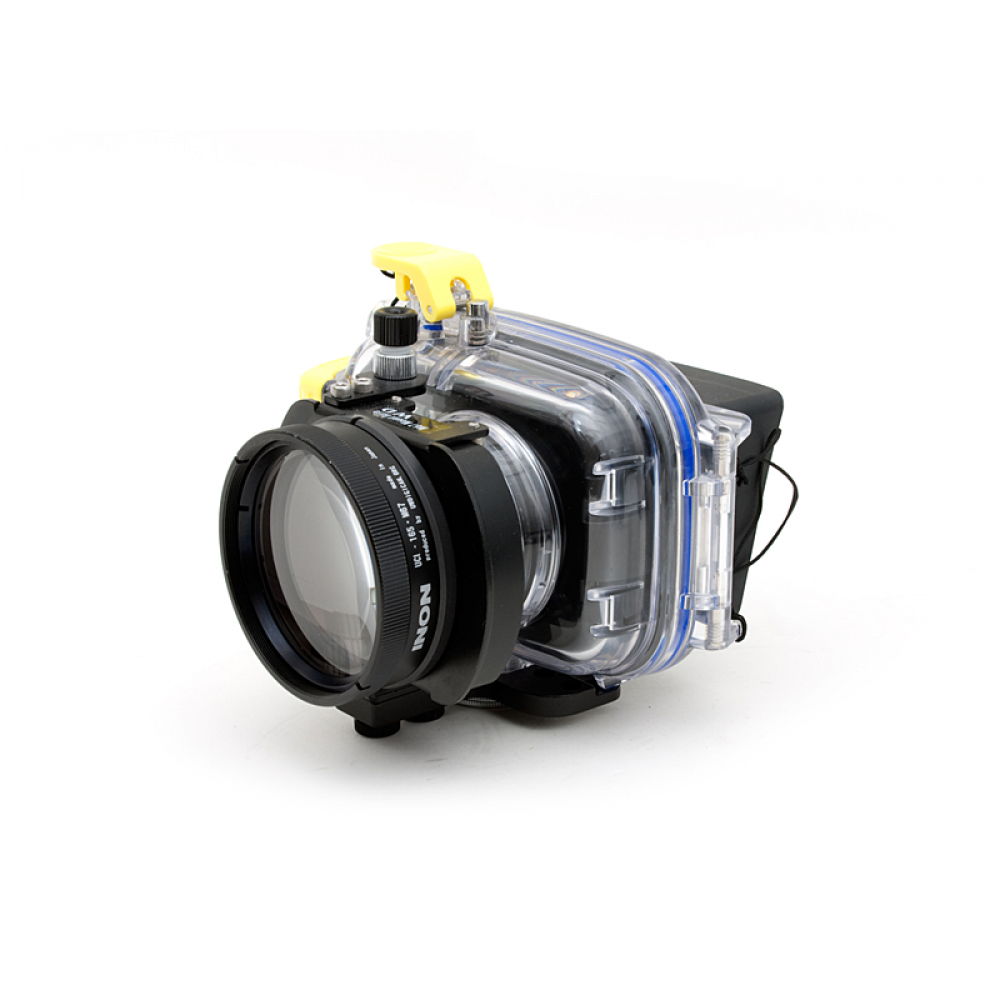

INON UCL-165M67 Close-up Lens
Click to enlarge

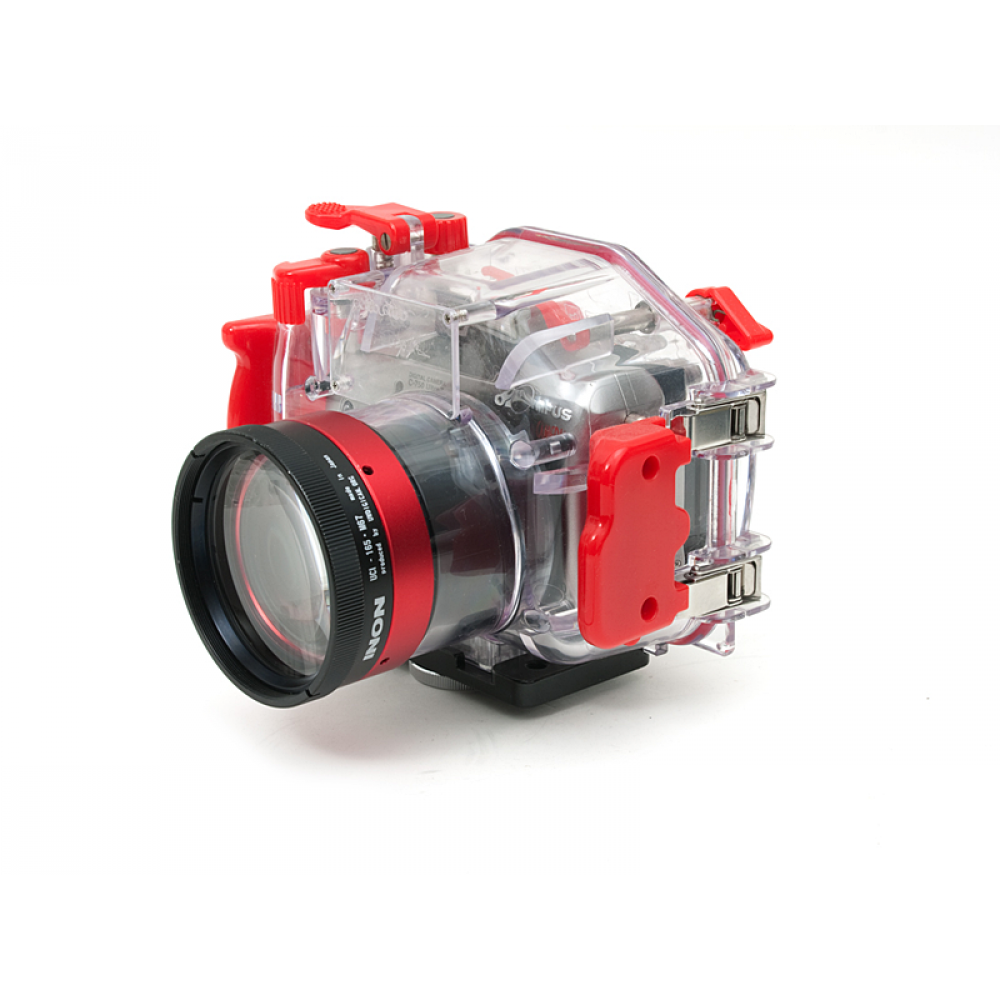

INON UCL-165M67 Close-up Lens
Click to enlarge

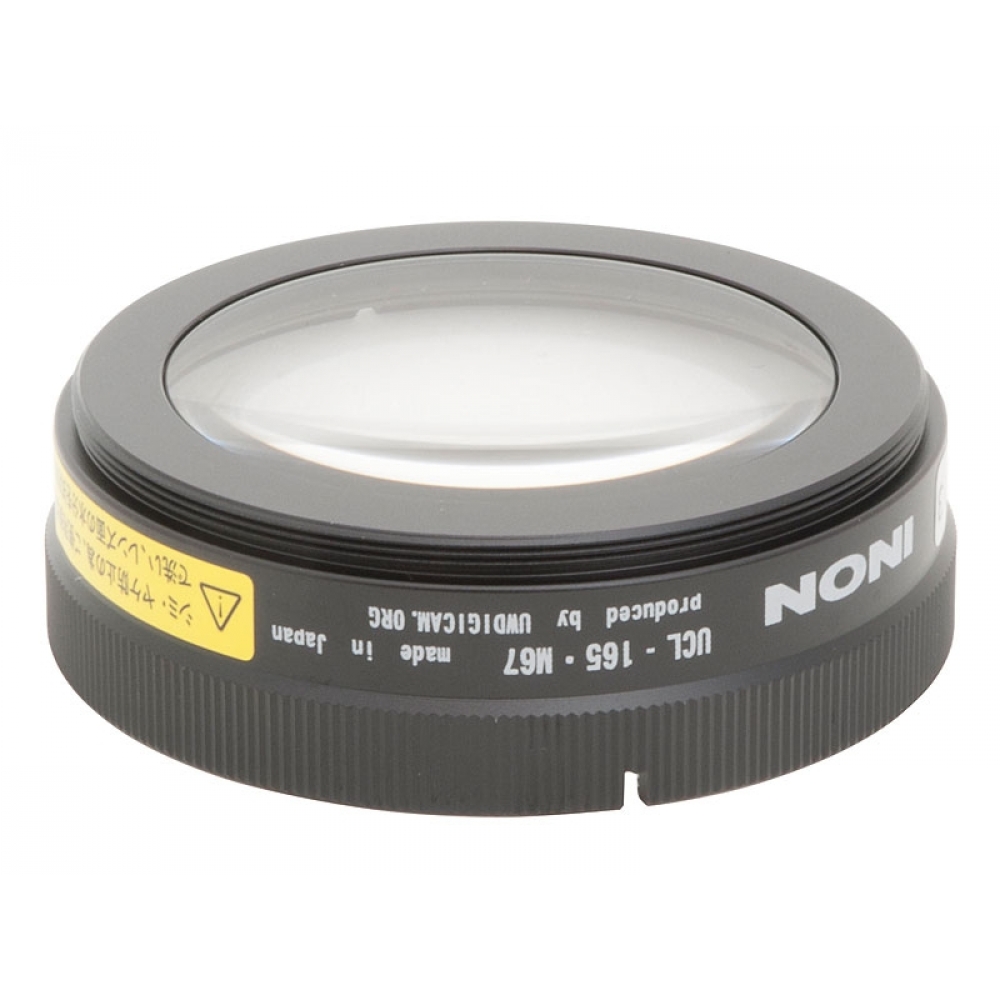

INON UCL-165M67 Close-up Lens
